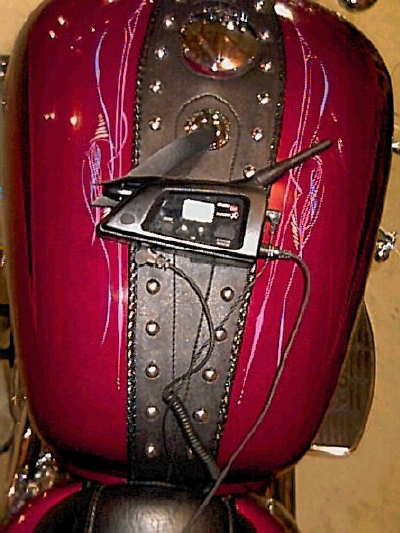

• Shown with a Chatterbox GMRS X1 Radio attached to the

  Mustang tank bib with Industrial Velcro



  .

    The Power Filter Cord is hooked up to the bottom of the radio.

•   The Push to Talk Cord is hooked up to the upper right.

•   The Headset Extension Cord is in the bottom right.

•   The Push to Talk and Power Filter cables are permanently installed on this bike.  We just pull the cables out from under the seat when using the radio.

•   This mounting will also work for a X1Slim, Tandem 50 intercom and FRS X2.

 This set-up allows a more protective location for the radio and allows the battery to be charging all the time.

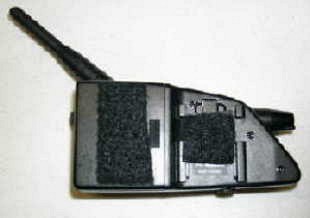

Place one piece of Velcro on the back of the battery cover appx. size 1 1/4" x  2 1/4".

Obtain a 1" diameter fairly thick washer.

Attach the washer using a piece of industrial double sided tape to the middle of the area on the back of the radio where the radio would snap into the mounting bracket.  This will bring the area out almost flush with the battery cover.

Place an appx. 1 1/8" by 1 1/8" piece of velcro on the washer now.

Decide where to place the radio on your bike and install the mating Velcro.

Always use both mounting locations on the back of the radio.  The radio will not be held securely enough if you just use Velcro on the back of the battery compartment.
